Denel AH-2 Rooivalk (Kestrel)

Dimensions:
Length: 61.45ft (18.73m)
Width: 51.12ft (15.58m)
Height: 17.03ft (5.19m)

Performance:
Max Speed: 173mph (278kmh; 150kts)
Max Range: 438miles (705km)
Climb Rate: 2,620 ft/min
Ceiling: 20,000ft (6,096m; 3.8miles)

Structure:
Crew: 2
Hardpoints: 6 (including wingtip mounts)
Empty Weight: 12,632lbs (5,730kg)
MTOW: 19,290lbs (8,750kg)

Power:
Engine(s): 2 x Turbomeca Makila 1K2 turboshaft engines generating 1,845shp each and driving a four-blade main rotor and a five-blade tail rotor.

Weapons Suite: 1 x 20mm Armscor F2 cannon (chin mounted turret)
Mission-specific ordnance can include any of the following:
16 x ZT6 Mokopa anti-tank missiles
70mm rocket launching pods
Mistral infrared homing air-to-air missiles (on wingtip mounts)

Operator: South Africa

Variants:
XH-1 - Alpha concept demonstrator based on the French-built Alouette III design.
XTP-1 Beta - French-built Puma helicopters modified as gunships for evaluation and testing.
XH-2 "Rooivalk" - Initial Prototype Designation
XDM (eXperimental Development Model) - A redesignation of the XH-2 prototype; avionics and weapons development platform.
EDM (Engineering Developmental Model) - Production Evaluation Model.
CSH-2 - Initial Production Model Designation
AH-2 - Redesignation of the CSH-2 Production Model occurring in 1998.
Selengkapnya...

USS Theodore Roosevelt (CVN-71)

Dimensions:
Length: 1092ft (332.84m)
Beam: 252ft (76.81m)
Draught: 37ft (11.28m)

Performance:
Surface Speed: 30kts (35mph)
Range: Essentially Unlimited

Structure:
Complement: 5,680
Suface Displacement: 97,000tons

Power:
Engine(s): 2 x Westinghouse A4W nuclear reactors; 4 x steam turbines generating 260,000shp; 4 x shafts.

Weapons Suite:
3 x NSSMS Sea Sparrow sea-to-air missile launchers
3 x 20mm Phalanx Close-In Weapon System (CIWS) anti-aircraft/anti-missile gattling guns
10 x 12.7mm M2HB machine guns


Air Arm:
90 fixed-wing and rotary-wing aircraft of various makes and types.
Selengkapnya...

USS Attu (CVE 102)

Dimensions:
Length: 512ft (156.06m)
Beam: 65.2ft (19.87m)
Draught: 20ft (6.10m)

Performance:
Surface Speed: 19kts (22mph)
Submerged Speed: 0kts (0mph)
Range: (18,359km)

Structure:
Complement: 860
Displacement: 7,800tons

Power:
Engine(s): 2 x engines powering 2 x reciprocating screws and 2 x shafts.

Weapons Suite:
1 x 5" main gun
16 x 40mm cannons
20 x 20mm cannons

Air Arm:
28 aircraft of various makes. Selengkapnya...

USS Enterprise (CV 6)

Dimensions:
Length: 810ft (246.89m)
Beam: 110ft (33.53m)
Draught: 25ft (7.62m)

Performance:
Surface Speed: 32kts (37mph)
Submerged Speed: 0kts (0mph)
Range: (23,149km)

Structure:
Complement: 2,217
Displacement: 25,500tons

Power:
Engine(s): 9 x Babcock and Wilcox boilers powering 4 x Parsons geared turbines with 4 x screws at 120,000shp.

Weapons Suite:
8 x 5" cannons on single mounts
4 x 1.1" cannons on quadruple mountings
24 x 12.7mm anti-aircraft machine guns

Air Arm:
Up to 90 aircraft of various types including 27 fighters, 37 dive bombers (Douglas Dauntless) and 15 torpedo bombers (Grumman TBF Avenger).


Selengkapnya...

USS John F. Kennedy (CV 67)


Dimensions:
Length: 1052ft (320.65m)
Beam: 252ft (76.81m)
Draught: 37ft (11.28m)

Performance:
Surface Speed: 34kts (39mph)
Submerged Speed: 0kts (0mph)
Range: (unkown)

Structure:
Complement: 5,410
Displacement: 82,655tons

Power:
Engine(s): 8 x boilers powering 4 steam turbines with 4 x shafts delivering 280,000shp.

Weapons Suite:
2 x GMLS Mk 29 Sea Sparrow anti-aircraft surface-to-air missile launchers
2 x Phalanx anti-aircraft / anti-missile CIWS (Close-In Weapon System)
2 x RIM-116 RAM (Rolling Airframe Missile) missile launchers

Air Arm:
80 aircraft of various makes throughout her career including A-7 Corsair II strike fighters, A-6 Intruder bombers, F-14 Tomcat interceptors, F/A-18 Hornets multi-role fighters and S-3 Vikings anti-submarine aircraft. Selengkapnya...

USS John C. Stennis (CVN 74)

Dimensions:
Length: 1092ft (332.84m)
Beam: 252ft (76.81m)
Draught: 41ft (12.50m)

Performance:
Surface Speed: 30kts (35mph)
Submerged Speed: 0kts (0mph)
Range: (160,933km)

Structure:
Complement: 5,680
Displacement: 97,000tons

Power:
Engine(s): 2 x Westinghouse A4W nuclear reactors with 4 x steam turbines feeding 4 x shafts at 260,000shp.

Weapons Suite:
2 x Mk 57 Mod3 NATO RIM-7 Sea Sparrow surface-to-air missile launchers
2 x RIM-116 RAM (Rolling Airframe Missile) short-range surface-to-air missile launchers
3 x 20mm Mk 15 Phalanx CIWS (Close-In Weapon System)

Air Arm:
90 aircraft of various makes and types including helicopters.
F/A-18 Hornet
EA-6B Prowler
MH-60R
MH-60S
E-2C Hawkeye

Selengkapnya...

USS Harry S. Truman (CVN 75)

Designation: USS Harry S. Truman (CVN 75)
Classification Type: Nuclear-Powered Aircraft Carrier
Ship Class: Nimitz-class
Country of Origin: United States
Initial Year of Service: 1998
Number in Class: 10
Dimensions:
Length: 1092ft (332.84m)
Beam: 252ft (76.81m)
Draught: 41ft (12.50m)

Performance:
Surface Speed: 30kts (35mph)
Submerged Speed: 0kts (0mph)
Range: (160,933km)

Structure:
Complement: 5,680
Displacement: 97,000tons

Power:
Engine(s): 2 x Westinghouse A4W nuclear reactors powering 4 x steam turbines and 4 x shafts at 260,000shp.

Weapons Suite:
2 x Mk 57 Mod3 Sea Sparrow surface-to-air missile launchers
2 x RIM-116 Rolling Airframe Missile short-range missile launchers
3 x 20mm mk 15 Phalanx CIWS (Close-In Weapon System)

Air Arm:
Up to 90 aircraft of various types including helicopters. Selengkapnya...

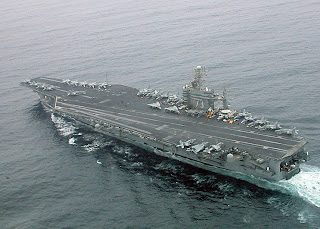

USS George Washington (CVN 73)


Dimensions:
Length: 1092ft (332.84m)
Beam: 252ft (76.81m)
Draught: 41ft (12.50m)

Performance:
Surface Speed: 30kts (35mph)
Submerged Speed: 0kts (0mph)
Range: (160,933km)

Structure:
Complement: 5,680
Displacement: 97,000tons

Power:
Engine(s): 2 x Westinghouse A4W nuclear reactors and 4 x steam turbines powering 4 x propeller shafts and generating 260,000shp.

Weapons Suite:
2 x Sea Sparrow Mk 57 Mod 3 surface-to-air missile launchers
2 x RIM-166 RAM (Rolling Airframe Missile) launchers
3 x 20mm Phalanx CIWS

Air Arm:
Up to 90 aircraft of various types including helicopters. Selengkapnya...

CAIC WZ-10

Model: CAIC WZ-10
Length: 46.26 ft ; 14.10 m
Height: 12.63 ft ; 3.85 m
Engine(s): 2 x Pratt & Whitney Canada PT6C-67C turboshaft engine delivering 1,531hp each and driving a five-blade main rotor and a four-blade tail rotor.
Empty Weight: 12,214 lbs ; 5,540 kg
MTOW: 13,228 lbs ; 6,000 kg
Max Speed: 168 mph ; 270 km/h ; 146 kts
Max Range: 497 miles ; 800 km
Ceiling: 19,685 ft ; 6,000 m ; 3.7 miles
Climb Rate: Not Available
Hardpoints: 4
Armament: 1 x 23mm cannon in undernose position; HJ-10 - anti-armor missile (under development); TY-90 - short-range air-to-air missile; Rocket Pods
Crew: 2
Operators: China Selengkapnya...

USS Carl Vinson (CVN 70)


Dimensions:
Length: 1092ft (332.84m)
Beam: 252ft (76.81m)
Draught: 41ft (12.50m)

Performance:
Surface Speed: 30kts (35mph)
Submerged Speed: 0kts (0mph)
Range: (160,933km)

Structure:
Complement: 5,680
Displacement: 97,000tons

Power:
Engine(s): 2 x Westinghouse A4W nuclear reactors and 4 x steam turbines feeding 4 x propeller shafts at 260,000shp.

Weapons Suite:
2 x Sea Sparrow Mk 57 Mod 3 surface-to-air missile launchers
2 x RIM-116 Rolling Airframe Missile short-range surface-to-air missile launchers
3 x 20mm Phalanx CIWS

Air Arm:
Up to 90 aircraft of various types. Selengkapnya...

USS America (CV 66)

Designation: USS America (CV 66)
Classification Type: Aircraft Carrier
Ship Class: Kitty Hawk-class
Country of Origin: United States
Initial Year of Service: 1965
Number in Class: 4


Dimensions:
Length: 1048ft (319.43m)
Beam: 248ft (75.59m)
Draught: 38ft (11.58m)

Performance:
Surface Speed: 34kts (39mph)
Submerged Speed: 0kts (0mph)
Range: (21,599km)

Structure:
Complement: 3,306
Displacement: 83,573tons

Power:
Engine(s): 8 x boilers powering 4 x steam turbines at 280,000shp.

Weapons Suite:
3 x Mark 29 launchers (Sea Sparrow surface-to-air missiles)
3 x 20mm Phalanx CIWS (Close-In Weapon Systems) systems

Air Arm:
79 aircraft of various makes including Vought A-7 Corsair II, F-4 Phantom and F-8 crusader fighter-bombers, SP-2 Neptune anti-submarine aircraft, SH-3A Sea King helicopters. Selengkapnya...

USS Abraham Lincoln (CVN 72)

Dimensions:
Length: 1092ft (332.84m)
Beam: 252ft (76.81m)
Draught: 41ft (12.50m)

Performance:
Surface Speed: 30kts (35mph)
Submerged Speed: 0kts (0mph)
Range: (160,933km)

Structure:
Complement: 5,680
Displacement: 97,000tons

Power:
Engine(s): 2 x Westinghouse A4W nuclear reactors with 4 x steam turbines powering 4 x shafts at 260,000shp.

Weapons Suite:
2 x Mk 57 Mod3 Sea Sparrow anti-aircraft missile launchers
2 x RIM-116 Rolling Airframe Missile Launchers
3 x 20mm Phalanx CIWS (Close-In Weapon System)

Air Arm:
90 aircraft of various types including fighters, bombers, specialty aircraft and helicopters. Selengkapnya...

USS Enterprise (CVN 65)

Dimensions:
Length: 1123ft (342.29m)
Beam: 133ft (40.54m)
Draught: 39ft (11.89m)

Performance:
Surface Speed: 30kts (35mph)
Submerged Speed: 0kts (0mph)
Range: (160,933km)

Structure:
Complement: 5,696
Displacement: 93,500tons

Power:
Engine(s): 8 x A2W nuclear reactors with a total output of 280,000shp.

Weapons Suite:
2 x Octuple Mk 29 RIM-7 Sea Sparrow missile launchers
3 x Phalanx CIWS (1 later removed)
2 x RIM-116 RAM (Rolling Airframe Missile) launchers (added later)
Selengkapnya...

Jeanne d'Arc (R 97)

Designation: Jeanne d'Arc (R 97)
Classification Type: Conventionally-Powered Helicopter Cruiser
Ship Class: Jeanne d'Arc (CVH)
Country of Origin: France
Initial Year of Service: 1964
Number in Class: 1

Dimensions:
Length: 597ft (181.97m)
Beam: 79ft (24.08m)
Draught: 25ft (7.62m)

Performance:
Surface Speed: 26kts (30mph)
Submerged Speed: 0kts (0mph)
Range: (12,070km)

Structure:
Complement: 777
Displacement: 10,575tons

Power:
Engine(s): 4 x turbines producing 10,000hp each.

Weapons Suite:
6 x Exocet 38 surface-to-surface anti-ship missiles
2 x 100mm cannons (initially 4 turrets)
4 x 12.7mm anti-aircraft machine guns

Air Arm:
Up to ten aircraft that can include any of the following:
2 x Aerospatiale Puma Helicopters
2 x Aerospatiale Gazelle Helicopters
2 x Alouette III Helicopters
8 x Super Frelon Helicopters

Selengkapnya...

NAe Sao Paulo



Dimensions:
Length: 870ft (265.18m)
Beam: 104ft (31.70m)
Draught: 28.2ft (8.60m)

Performance:
Surface Speed: 32kts (37mph)
Range: (11,265km)

Structure:
Complement: 1,338
Displacement: 32,800tons

Power:
Engine(s): 6 x Indret boiler systems powering 4 x steam turbines and 2 x propellers at 126,000hp.

Air Arm:
Up to 40 aircraft of various types including A-4KU Skyhawk fighters along with Sikorsky SH-3 Sea King, Eurocopter UH-12/13 Esquilo, Eurocopter AS 532 SC Cougar and HB 350 / HB.355 Ecureuils helicopters. Selengkapnya...

Charles de Gaulle (R 91)

Dimensions:
Length: 857.9ft (261.49m)
Beam: 211.15ft (64.36m)
Draught: 30.93ft (9.43m)

Performance:
Surface Speed: 27kts (31mph)
Submerged Speed: 0kts (0mph)
Range: (160,933km)

Structure:
Complement: 2,750
Displacement: 42,000tons

Power:
Engine(s): 2 x K15 Pressurized Water Reactor (PWR) (350MW total) and 4 x diesel-electric engines powering 2 x shafts.

Weapons Suite:
4 x SYLVER 8-cell surface-to-air missile launchers (MBDA Aster 15 missiles)
2 x Sadral 6-cell short-range surface-to-air missile launchers (Mistral missiles)
8 x 20mm GIAT 20F2 dual-purpose close-defense cannons

Air Arm:
Up to 40 aircraft of various makes and types including:
16 x Super Etendard fighters
6 x Mirage 2000D strike fighters
5 x Rafale M multi-role fighters
2 x E-2C Hawkeye Airborne Early Warning Aircraft
2 x Eurocopter AS 565MB Panther OR 2 x Eurocopter AS 322 Cougar Mk II OR Eurocopter Super Frelon Helicopters
2 x Dauphin Helicopters


Selengkapnya...

Aquila - Navy Ships

Designation: Aquila
Length: 760 ft (231.65 m)
Beam: 96 ft (29.26 m)
Draught: 24 ft (7.32 m)
Displacement: 28,356 tons
Machinery: 8 x boilers powering 4 x geared turbine engines with 4 x shafts at 151,000hp.
Surface Speed: 32 kts (37 mph)
Range: 3355 miles (5,399 km)
Armament: 8 x 5.3" guns; 12 x 2.5" guns; 132 x 20mm anti-aircraft guns
Aircraft: 66 aircraft of various makes
Complement/Crew: 1,420
Ships in Class: Aquila
Operators: Italy

Selengkapnya...

Graf Zeppelin (Flugzeugtrager A)

Dimensions:
Length: 860.7ft (262.34m)
Beam: 103.3ft (31.49m)
Draught: 24.11ft (7.35m)

Performance:
Surface Speed: 35kts (40mph)
Range: 9,206miles (14,816km)

Structure:
Complement: 2,026
Suface Displacement: 33,550tons

Power:
Engine(s): 4 x geared turbines developing 147,000kW powering 4 x shafts.

Weapons Suite:
16 x Sk.15-cm guns
12 x Flak (10.5-cm) guns
22 x Flak (3.7-cm) guns
28 x Flak (2.0-cm) guns

Air Arm:
10 x Messerschmitt Bf 109 fighters
20 x Junkers Ju 87 Stuka dive bombers
20 x Fieseler Fi 167 torpedo bombers Selengkapnya...

Principe de Asturias Aircraft Carrier, Spain


Selengkapnya...

Invincible Class Aircraft Carriers, United Kingdom



Selengkapnya...

Garibaldi Aircraft Carrier, Italy

Selengkapnya...

Project 1143 Krechyet Kiev class

Specifications

Designer: Nevskoye Planning and Design Bureau
Builder: Chernomorsky [Nikolayev South]
Displacement (tons): 36,000 tons standard; 38,000 tons standard [Gorshkov]; 43,000-43,500 tons full load; 45,000-45,500 tons full load [Gorshkov]
Speed (kts): 32 knots
Dimensions (m): 249.5-257.0 meters long waterline; 273.0-274.0 meters long overall; 32.6-32.7 meters waterline beam; 3.0 meters flight deck width; 9.5 meters draft standard; 12.0 meters draft mean full load
Propulsion: 8 turbopressurized boilers; 4 steam turbines; 200,000 shp; 4 shafts
Crew: 1,200-1,600 (including air group)

Armament:
Missiles:
KIEV, MINSK 2 SA-N-3 Goblet twin launchers; 2 SA-N-4 Gecko twin launchers; 8 SS-N-12 Sandbox tubes
NOVOROSSIYSK 2 SA-N-3 Goblet twin launchers; 12 SA-N-9 8-cell vertical launchers; 8 SS-N-12 Sandbox tubes
GORSHKOV 24 SA-N-9 8-cell vertical launchers;12 SS-N-12 Sandbox
Guns:
KIEV, MINSK, and NOVOROSSIYSK 4 76.2-mm/59-cal AA (2 twin); 8 30-mm/65-cal AK-630 close-in (8 multi-barrel)
GORSHKOV 2 100-mm/70-cal DP (2 single); 8 30-mm/65-cal AK-630 close-in (8 multi-barrel)
Torpedoes: 10 21-in (533-mm) torpedo tubes
Aircraft: 12 or 13 Yak-38 Forger VSTOL; 14 to 17 Ka-25 Hormone or Ka-27/29 Helix Selengkapnya...

RIM-116 Rolling Airframe Missile (RAM)

Karakteristik Umum (Block 1)

Fungsi Primer: Surface-to-Air Missile
Kontraktor: Raytheon, Diehl BGT Defence
Panjang: 2780 mm
Diameterr: 127 mm
Fin span: 445 mm
Kecepatan: Mach 2.0+
Warhead: 11.3 kg blast fragmentation
Launch Weight: 73.5 kg (162 lb)
Jarak tempuh: 7.5 km
Sistem Navigasi: three modes—passive radio frequency/infrared homing, infrared only, or infrared dual mode enabled (radio frequency and infrared homing)
Harga: $444,000
Date Deployed: 1992




Selengkapnya...

USS Nimitz

Ordered: 31 Maret 1967
Mulai Pembuatan: 22 Juni 1968
Peluncuran: 13 Mei 1972
Peresmian: 3 Mei 1975
Kelas: CVN-68
Homeport: NB San Diego, California
Motto: Teamwork, a Tradition
Julukan: "Old Salt"
Pembuat: Newport News Shipbuilding Co., Newport News, Va.

Displacement: Sekitar 97,000 ton (87,996.9 metric tons) full load
Panjang: Keseluruhan: 1,092 ft (333 m), Waterline: 1,040 ft (317 m)
Lebar: Keseluruhan: 252 ft (76.8 m), Waterline: 134 ft (40.8 m)
Draft*: Maximum navigational: 37 ft (11.3 m), Limit: 41 ft (12.5 m)
Propulsion: 2 × Westinghouse A4W nuclear reactors, 4 × steam turbines, 4 × shafts, 260,000 shp (194 MW)
Speed:30+ knots (56+ km/h)
Jarak Tempuh: Tak Terbatas
Complement: Ship's company: 3,200, Air wing: 2,480
Sensors and processing systems: AN/SPS-48E 3-D air search radar, AN/SPS-49(V)5 2-D air search radar, Mk 23 target acquisition radar, 2 × AN/SPN-46 air traffic control radars, AN/SPN-43B air traffic control radar, AN/SPN-44 landing aid radars, 3 × Mk 91 NSSM guidance systems, 3 × Mk 95 radars
Electronic warfare and decoys: SLQ-32A(V)4 Countermeasures suite, SLQ-25A Nixie torpedo countermeasures
Armament: three Rolling Airframe Missile (RAM) launchers, three Mk 29 NATO Sea Sparrow launchers
Armor: Unknown
Jumlah Pesawat: 90 fixed wing and helicopters
Ketapel: 4
Elevator Pesawat: 4


Nimitz Carrier Battle Group
USS Nimitz merupakan bagian dari Carrier Strike Group 11 (CSG-11) dengan Carrier Air Wing 11 di atasnya, dengan Nimitz sebagai pimpinannya dan sebagai tempat komandan Destroyer Squadron 23.

Ships of DESRON-23 (Destroyer Squadron):
- USS Chafee (DDG 90)
- USS Higgins (DDG 76)
- USS John Paul Jones (DDG 53)
- USS Pinckney (DDG 91)
- USS Sampson (DDG 102)

Squadrons of CVW-11:
- Strike Fighter Squadron 14 (VFA-14) "Tophatters"
- Strike Fighter Squadron 41 (VFA-41) "Black Aces"
- Strike Fighter Squadron 81 (VFA-81) "Sunliners"
- Marine Fighter Attack Squadron 232 (VMFA-232) "Red Devils"
- Electronic Attack Squadron 135 (VAQ-135) "Black Ravens"
- Carrier Airborne Early Warning Squadron 117 (VAW-117) "Wallbangers"
- Helicopter Antisubmarine Squadron 6 (HS-6) "Indians"
- Fleet Logistics Support Squadron 30 Detachment 4 (VRC 30) "Providers" Selengkapnya...

F-2

Specifications

Maximum Weight: 22000 kg
Power of Engine: 13200kg
Maximum Speed: 2300 km/h
Maximum Altitude: 20000 m
Radius of Action: 1000 km
Weapons: 1gun (20mm)

Missiles:
• AAM-1
• AAM-3
• Maverik
• ASM-2
• bombs

Selengkapnya...

F-1

Specifications

Type: F-1
Function: attack
Year: 1977
Crew: 1
Engines: 2 * 3300kg Ishikawajima-Harime TF40-801A
Wing Span: 7.88m
Length: 17.66m
Height: 4.39m
Wing Area: 21.18m2
Empty Weight: 6358kg
Max.Weight: 13674kg
Speed: 1700km/h
Ceiling: 15250m
Range: 1130km
Internal Fuel: 3054 kg
Drop Tanks: 833 L drop tank with 659kg of fuel for 126nm range
In-Flight Refueling: No
Payload: 2722kg
Sensors: J/AWG-12 radar, RWR, basic bombsite
Armament:
• Cannon: 1 20mm Vulcan
• Type 80 ASM
• Mk82 500lb bombs
• M117 750lb bombs
• LAU-69 rocket pods
• AAM-1
• AIM-9L



Selengkapnya...

HF-24 Marut

Specifications
Year: 1961
Crew: 1
Engines: 2 * 2200kg HAL/R.R. Orpheus Mk.703
Wing Span: 9.00m
Length: 15.87m
Height: 3.60m
Wing Area: 28m2
Empty Weight: 6195kg
Max. Weight: 10908kg
Speed: 1128km/h
Ceiling: 13750m
Range: 800km
Armament: 4*g30mm 48*r68mm 1814kg
Selengkapnya...

Hindustan (HAL) Tejas / Light Combat Aircraft (LCA) Light Multi-Role Fighter


HISTORY:
First Flight: (TD-1) 4 January 2001
Service Entry: planned for 2010

CREW: one: pilot

ESTIMATED COST: $21 million

AIRFOIL SECTIONS:
Wing Root: unknown
Wing Tip: unknown

DIMENSIONS:
Length: 43.27 ft (13.20 m)
Wingspan: 26.88 ft (8.20 m)
Height: 14.42 ft (4.40 m)
Wing Area: 412.6 ft² (38.4 m²)
Canard Area: not applicable

WEIGHTS:
Empty: 12,125 lb (5,500 kg)
Normal Takeoff: 18,740 lb (8,500 kg) [clean]
Max Takeoff: 27,560 lb (12,500 kg)
Fuel Capacity: internal: 795 gal (3,000 L); external: 1,055 gal (4,000 L)
Max Payload: 8,820 lb (4,000 kg)

PROPULSION:
Powerplant: (prototypes) one General Electric F404-F2J3 or F404-IN20 turbofan; (production) one GTRE GTX-35VS Kaveri turbofan
Thrust: (F404-F2J3) 18,100 lb (80.50 kN); (F404-IN20) 18,700 lb (83.18 kN); (GTX) 20,200 lb (89.86 kN)

PERFORMANCE:
Max Level Speed: at altitude: 1,195 mph (1,920 km/h) at 36,000 ft (11,000 m), Mach 1.8; at sea level: unknown
Initial Climb Rate: unknown
Service Ceiling: 50,000 ft (15,250 m)
Range: 460 nm (850 km)
g-Limits: +9 / -3.5

ARMAMENT:
Gun: one 23-mm GSh-23 twin-barrel cannon (220 rds)
Stations: eight external hardpoints
Air-to-Air Missile: R-77/AA-12 Adder, R-73/AA-11 Archer, BVRAAM
Air-to-Surface Missile: up to two conventional cruise missiles, anti-ship missiles
Bomb: laser-guided bombs, conventional bombs, cluster bombs
Other: rocket pods

KNOWN VARIANTS:
LCA-TD-1: First technology demonstrator equipped with a General Electric F404-F2J3 turbofan
LCA-TD-2: Second technology demonstrator
LCA-PV-1 and PV-2: Single-seat prototype vehicles
LCA-PV-3: Single-seat prototype vehicle that should be at or very close to production form, equipped with in-flight refueling capability
LCA-PV-4: Single-seat prototype vehicle for a naval variant
LCA-PV-5: Two-seat trainer prototype vehicle
Tejas: Production model for the Indian Air Force
Trainer: Two-seat trainer model
Navy model: A navalized version with strengthened landing gear and a redesigned forward fuselage to be used aboard a future Indian aircraft carrier
MCA: Planned Medium Combat Aircraft derived from the LCA, supposed to possess greater stealth characteristics and thrust-vectoring capability

KNOWN COMBAT RECORD: not yet in service

KNOWN OPERATORS:
India, Bharatiya Vayu Sena (Indian Air Force)
India (Indian Naval Air Squadron) Selengkapnya...

Chengdu J-10, F-10 Multi-Role Fighter

HISTORY:
First Flight: 24 March 1998
Service Entry: 2004 or 2005

CREW: 1 pilot

DIMENSIONS:
Length :47.86 ft (14.57 m)
Wingspan/Lebar Sayap: 28.75 ft (8.78 m)
Height: 15.75 ft (4.80 m)
Wing Area: 355.2 ft2 (33 m2)
Canard Area: 58.55 ft2 (5.45 m2)

WEIGHTS:
Empty : 15,300 lb (6,940 kg)
Typical Load: unknown
Max Takeoff : 40,565 lb (18,400 kg)
Fuel Capacity: internal: unknown, external: unknown
Max Payload: 18,520 lb (8,400 kg)

PROPULSION:
Powerplant : one Saturn/Lyulka AL-31F afterburning turbofan
Thrust: 27,560 lb (122.6 kN)

PERFORMANCE:
Max Level Speed: at altitude: Mach 1.85; at sea level: unknown
Initial Climb Rate : unknown
Tinggi Max: unknown
Jarak Tempuh: 1,000 nm (1,850 km)
g-Limits: unknown

ARMAMENT:
Gun: probably one 23-mm or 30-mm cannon
Stations : eleven external hardpoints and two wingtip rails
Air-to-Air Missile : PL-8, PL-10
Air-to-Surface Missile: unknown
Bomb: unknown

KNOWN VARIANTS:
J-10: Prototype fighter

KNOWN OPERATORS: China


Selengkapnya...
